YS1604 YoLink SpeakerHub User Manual

YoLink SpeakerHub

YS1604-UC
Set-up & User Guide
Rev 1.4
Revised: 05/17/2023
Copyright © 2023 YoSmart Inc. All rights reserved

A. Thank you!
B. Introduction
C. Before You Begin
D. What’s in the Box?
E. Get to Know Your SpeakerHub
F. Install the YoLink App
G. Open the App
H. Add Your SpeakerHub to the App
I. Power Up the SpeakerHub
J. Mobile Device Settings
K. Connect Hub to WiFi
L. Introduction to the App
M. SpeakerHub Device Settings
N. Advanced Settings
O. Firmware Updates
P. Factory Reset
Q. CE Mark Warning
R. Warranty
S. Warning
T. Contact Us / Support

This user guide is also available in video format, on our website and YouTube channel. See part N of this guide for more info.

User Guide Conventions
To assure your satisfaction with your purchase, please read this user guide we have prepared just for you. The following icons are used to convey specific types of information:

	Very important information (can save you time!)
	Good to know info but may not apply to you
	Troubleshooting tips
	Mostly unimportant (it’s ok to breeze past it!)

A. Welcome!

Thank you for purchasing YoLink products! We appreciate you trusting YoLink for your smart home & automation needs. Your 100% satisfaction is our goal. If you experience any problems with your installation, with our products or if you have any questions that this manual does not answer, please contact us right away. See the Contact Us section for more info.

Thank you!

Eric Vanzo
Customer Experience Manager

B. Introduction

Visit our YoLink Thermostat support page on our website, for the latest installation guides, additional resources, information and videos by visiting:

https://shop.yosmart.com/pages/speakerhub-product-support

Or by scanning the QR code:

Download the most current version of the user guide by scanning the QR code:

YoLink Hubs are the gateway to the internet for your YoLink devices. As opposed to many smart home systems, the individual devices are not on your network or WiFi and are not directly connected to the internet. Instead, your devices communicate with the Hub, which connects to the internet, the cloud server and the app.

Your SpeakerHub can only connect to the internet via a 2.4 GHz band provided by your WiFi network Like most IoT and home automation devices, your SpeakerHub connects only to the 2.4 GHz WiFi band. Nearly all residential WiFi routers have a 5 and a 2.4 GHz band. But your router may or may not display SSIDs for both bands or they may both have the same name. If you know which SSID is your 2.4 GHz band, this is the one your Hub will connect to. With some exceptions, your router and the SpeakerHub will connect automatically via 2.4 GHz. Some routers may attempt to connect your Hub to 5 GHz. Additional support may be needed, for example, changing your router settings.

You can have multiple hubs, including a combination of our original Hub and your new SpeakerHub. While the YoLink wireless network has a ¼ mile open-air range, additional hubs may be required in large buildings, such as high-rises, and/or to support thousands of devices.

	“5 GHz” should not be confused with “5G” cell phone service
	Multi-step authentication networks, such as hotels and airports, are not compatible!

C. Before You Begin

Find a suitable place for your SpeakerHub to live. SpeakerHub wants to be indoors, clean and dry.

SpeakerHub is not designed for wall-mounting.

Place your SpeakerHub at a location where you can hear the speaker clearly, at a moderate volume level. Avoid placing your SpeakerHub inside a cabinet, or on or near metal, magnets, or sources of radio or electromagnetic energy or interference, such as radio transmitters, as well as other WiFi equipment.

Do not place your SpeakerHub on or near sources of heat or intense direct sunlight, such as a space heater.

An outlet will be required for the power adapter for your SpeakerHub. Ensure it can have a dedicated outlet; it will not work if it is unplugged; SpeakerHub does not have an internal battery.

You do not need to re-scan your existing devices if you are adding or replacing a Hub

Do not allow your SpeakerHub to get wet … or eat after midnight

D. What’s in the Box?


Quick Start Guide	SpeakerHub

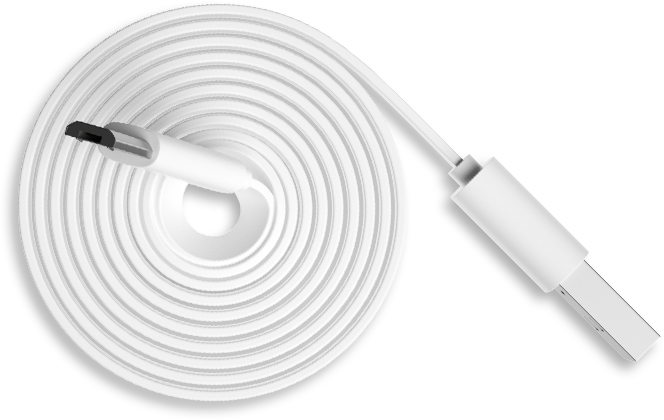

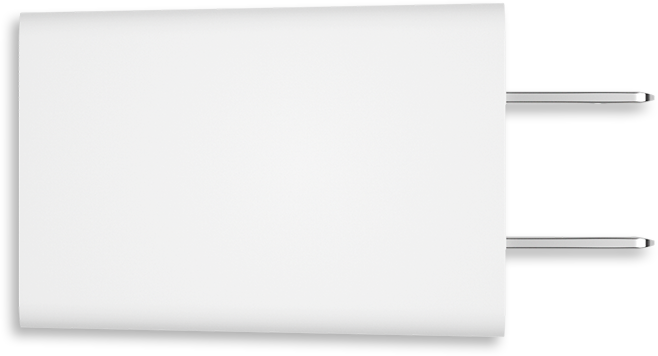

USB Cable (“Micro B”)	AC Adapter Power Supply

E. Get to Know Your SpeakerHub

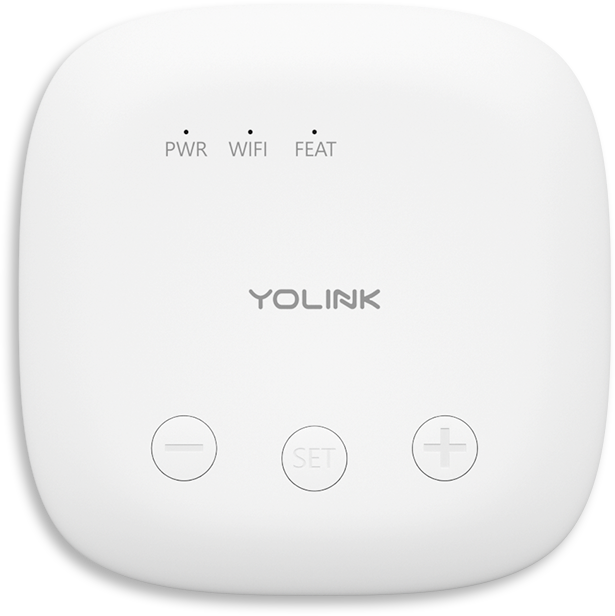

Please take a moment to familiarize yourself with your new SpeakerHub, in particular the LED behaviors and SET button functions.

a. Power Status LED

b. WiFi Status LED

c. Feature Status LED

d. SET Button

Press and Hold 5-10 seconds: WiFi Setting

Press and Hold 20-25 seconds: Factory Reset (will erase all the WiFi connection history)

e. Volume +

Press to increase the volume

f. Volume -

Press to reduce the volume, you can not silence the device using this button

g. Power Port

h. Audio Output

LED Behavior explanations

i. Power Status LED
	Blinking Green Hub is On
j. WiFi Status LED
	Blue Connected to Internet
	Blinking Blue WiFi Settings Change
k. Feature Status LED
	Slow Blinking Green Once Actions Run Succeeded
	Blinking Red Once, Then Green Once Device Turned On

F. Install the YoLink App

If you are new to YoLink, please install the app on your phone or tablet, if you have not already. Otherwise, please proceed to part H.
Scan the appropriate QR code below or find the “YoLink app” on the appropriate app store.

Apple phone/tablet iOS 9.0 or higher Android phone/tablet 4.4 or higher
Open the app and tap Sign up for an account. You will be required to provide a username and a password. Follow the instructions, to set up a new account. Allow notifications, when prompted.

	If you encounter an error message attempting to create an account, disconnect your phone from WiFi, and try again, connected only to the cellular network
	Retain your username and password in a secure location

G. Open the App

You will immediately receive a welcome email from no-reply@yosmart.com with some helpful information. Please mark the yosmart.com domain as safe, to ensure you receive important messages in the future.
Log in to the app using your new username and password.
The app opens to the Favorite screen, as shown. This is where your favorite devices will be shown. You can organize your devices by room, in the Rooms screen, later.
Tap Add Device (if shown) or tap the scanner icon

QR code scanner icon

H. Add Your SpeakerHub to the App

Approve access to your phone’s camera, if requested. A viewfinder will be shown on the app.

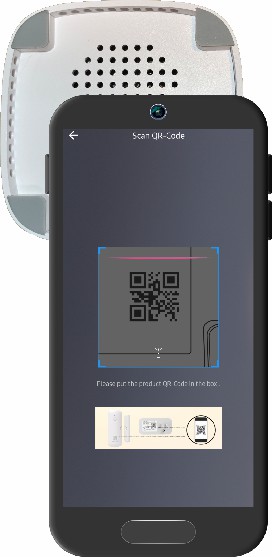

Hold the phone over the QR code (on the underside of the hub) so that the code appears in the viewfinder. If successful, the Add Device screen will be displayed.

If you experience difficulties scanning in a new device, ensure the code is not dirty or smudged, and that the camera has adequate lighting. If you are still unable to scan a device, please make a note of the serial number for our customer support staff. This is the number right below the QR code, a long number preceded by “S/N:”

You can change the device name and assign it to a room later. Ensure that the Favorite icon is selected as shown (red heart). Tap Bind device

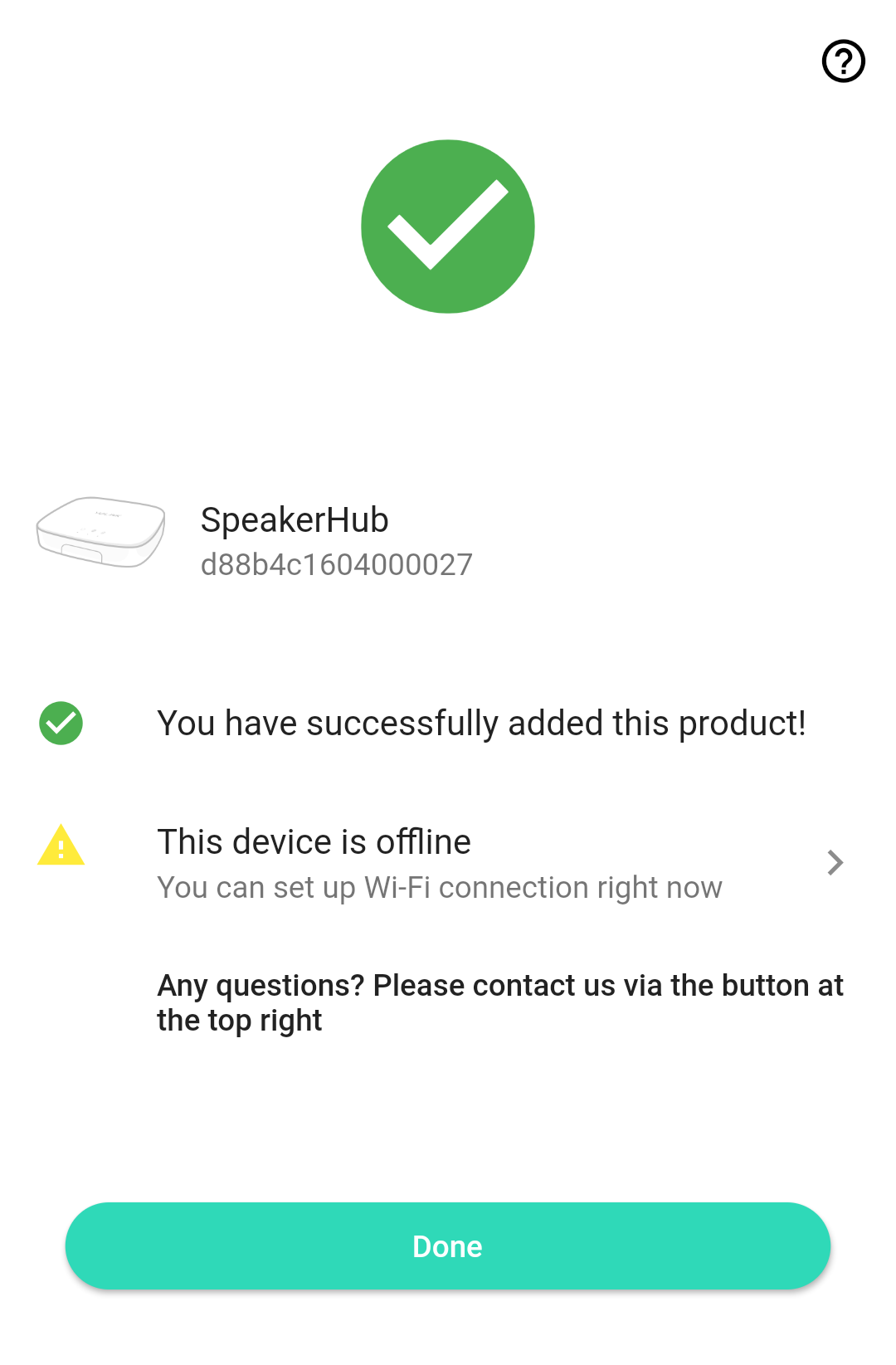

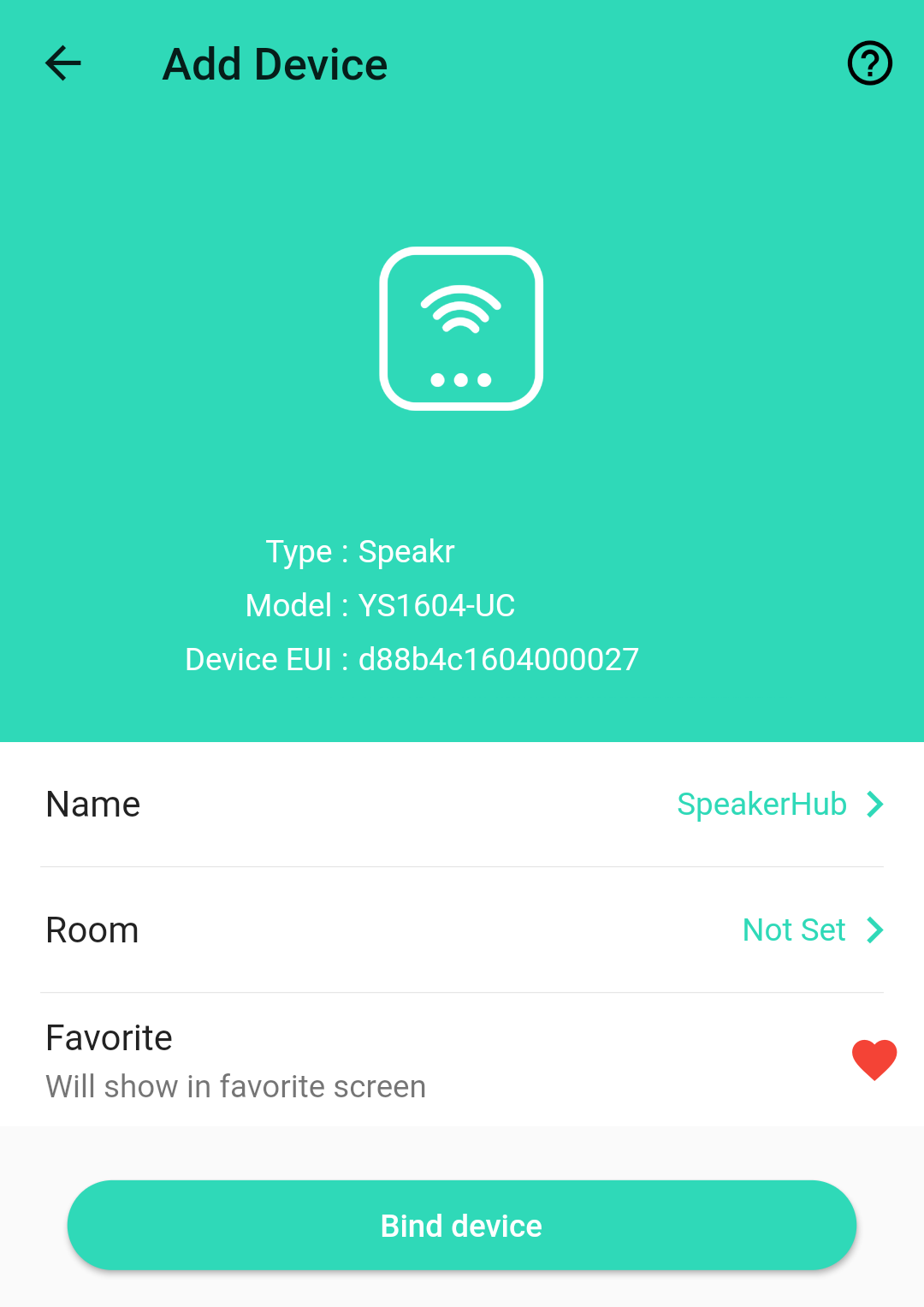

If successful, the screen will appear as shown. Tap Done (do not tap “set up WiFi connection” at this time)

I. Power up the SpeakerHub

Connect the supplied USB cable to the hub and to the power adapter as shown. Plug in the adapter. Observe the green power (PWR) LED is blinking

J. Mobile Device Settings

iOS phones only: if prompted, enable Local Network Access. (Search “iOS location services” for more information)
If prompted, grant access to your location. Tap Allow Once. This is required for the next steps.

To check or edit Location Services on your phone:

iOS: Go to Settings, tap Privacy, tap Location Services

Ensure Location Services is on/enabled. Scroll down to and tap the YoLink app Select While Using the App Enable Precise Location

Android: Go to Settings, tap Location. Ensure Location is On. Tap App Permissions. Scroll down to and tap the YoLink app, then set permission to Allowed Only While in Use

In your phone, open WiFi settings (Settings, WiFi)
Identify your 2.4 GHz network, if possible. If there is only one SSID (network ID) you recognize, you will use that one
Select the appropriate network and log-in, if needed

If your SSID is hidden, you must manually log into it on your phone, by selecting “Other...” in Other Networks or Choose a Network

	If you experience difficulties connecting the SpeakerHub to your WiFi, try temporarily disabling or turning off your 5 GHz band. Check for this option in your router’s app, or by using a browser interface. For example, for the Eero router, in the app, go to Settings, Troubleshooting, “My device won’t connect”, then tap “Temporarily pause 5 GHz”
	Some routers allow you to “white list” a device based on its MAC address. The MAC address for your SpeakerHub can be determined by combining “D88B4C04” with the last four digits of the EUI number. The EUI number can be found in the device settings screen.

K. Connect Hub to WiFi

From the Rooms or Favorites screen, tap on the SpeakerHub icon, as shown in the left figure.

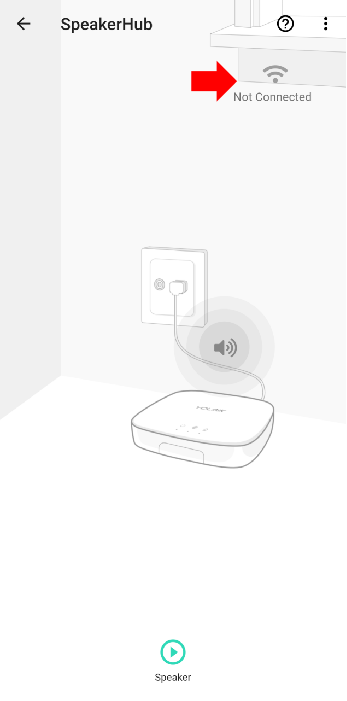

Tap on the WiFi icon as shown on the right figure .

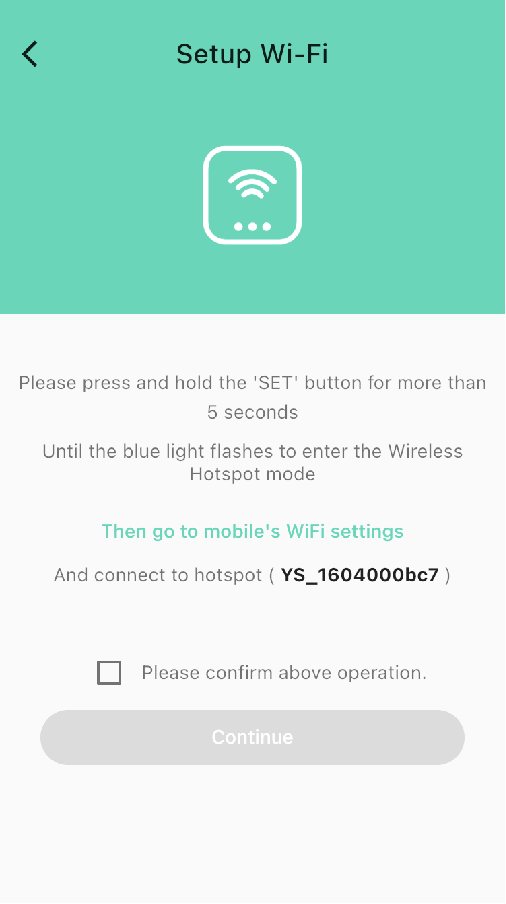

Please review the instructions on the Setup Wi-Fi screen. After pressing the SET button on the SpeakerHub, you will then log into the SpeakerHub’s hotspot on your phone. This will need to be done with no delays between steps, otherwise the Hub will exit hotspot mode (in 5 minutes).
As directed in the app, press the hub’s SET button for 5 seconds or until the WiFi LED flashes rapidly

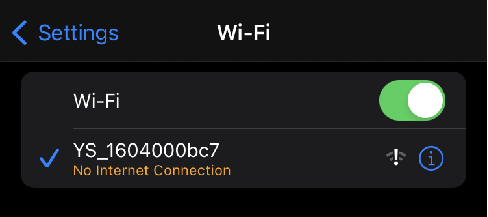

Log-in to the SpeakerHub hotspot. It is identified as YS_1604xxxxxx. Disregard any messages about no internet connection. If requested, approve “Once” or “This Time Only”.

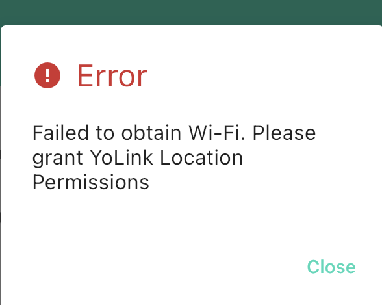

If you get an error message as shown below, or if requested, grant access to your phone’s location data, also known as “Location Services” (As noted in Part J). Tap Allow Once, if applicable.
If you see a “connect to device timeout” message, tap Close
Return to the app. Check the “Please confirm the above operation” checkbox. Tap Continue. The Enter WiFi Password screen appears as shown.

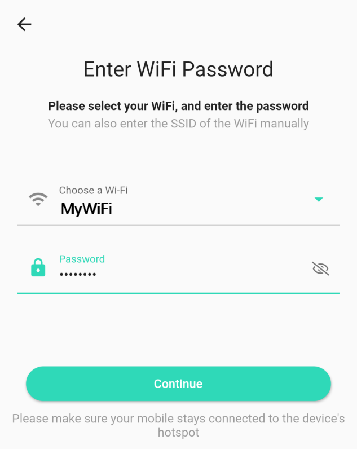

In the Choose a WiFi box, select or enter your 2.4 GHz SSID (unless it is hidden, it should appear in the list, when you tap in this area). Enter your WiFi password, then tap Continue

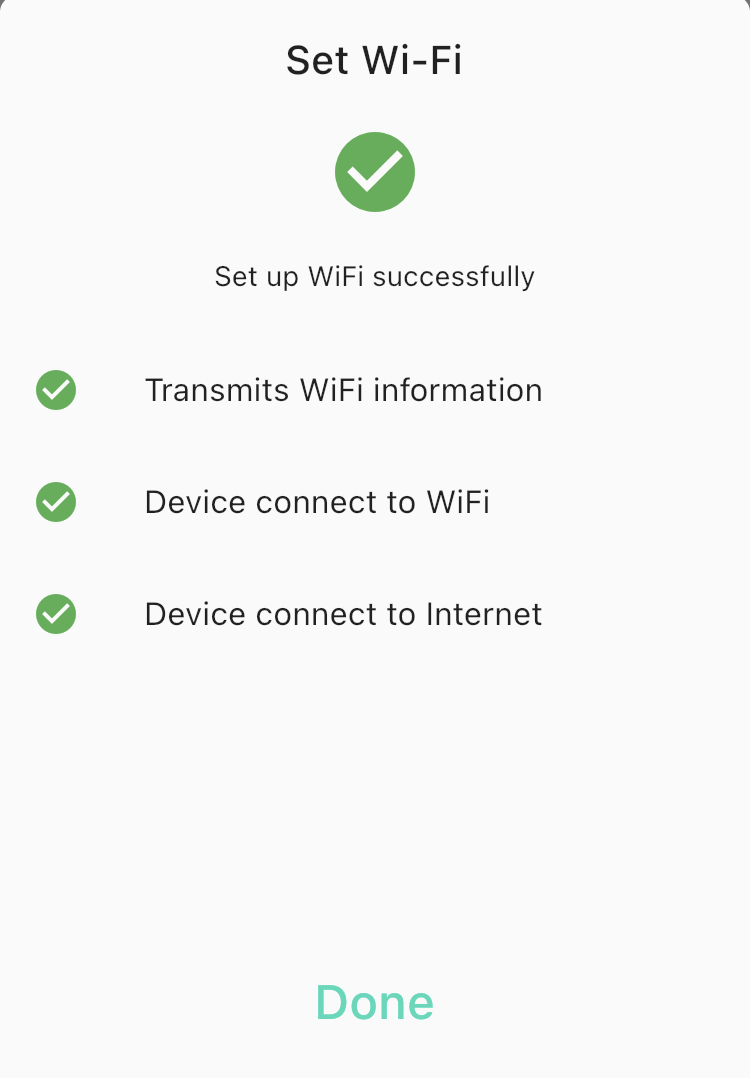

The “Set up WiFi successfully” message should appear on the screen as shown. Tap Done
The SpeakerHub’s blue internet status LED should be on, indicating an internet connection is established

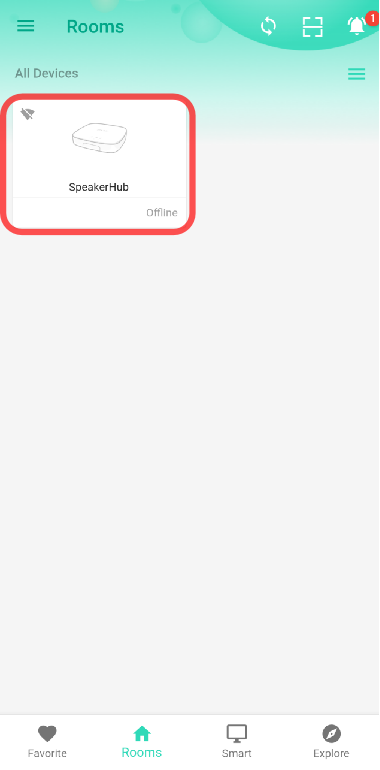

At first, in the app, your SpeakerHub may appear offline. Tap the Refresh icon or swipe down on the screen to refresh the screen.
If your SpeakerHub indicates Online as shown, you can proceed to part L

L. The YoLink App

New to the YoLink app? Please visit our SpeakerHub support page, for additional support information and resources for your SpeakerHub, as well as for the YoLink app. Take a look around the SpeakerHub area, then, click YoLink Academy for documents and videos that will explain the features of the app and show you how to change notification settings, and how to set up scenes and automations, etc.

Scan the QR code or click the link to visit our SpeakerHub support page on yosmart.com

https://shop.yosmart.com/pages/speakerhub-product-support

M. SpeakerHub Device Settings

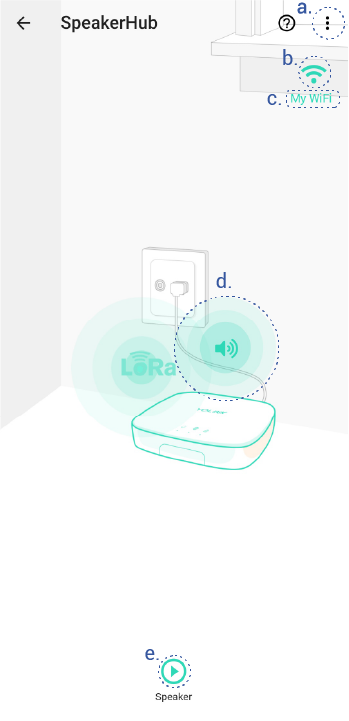

From the Rooms screen, tap the SpeakerHub icon. Please review the image before tapping the three dots (“more”) icon.

a. Tap to view or edit device settings
b. Indicates internet connection
c. Your WiFi SSID

d. Tap to disable the speaker

e. Tap to create a manual speaker broadcast

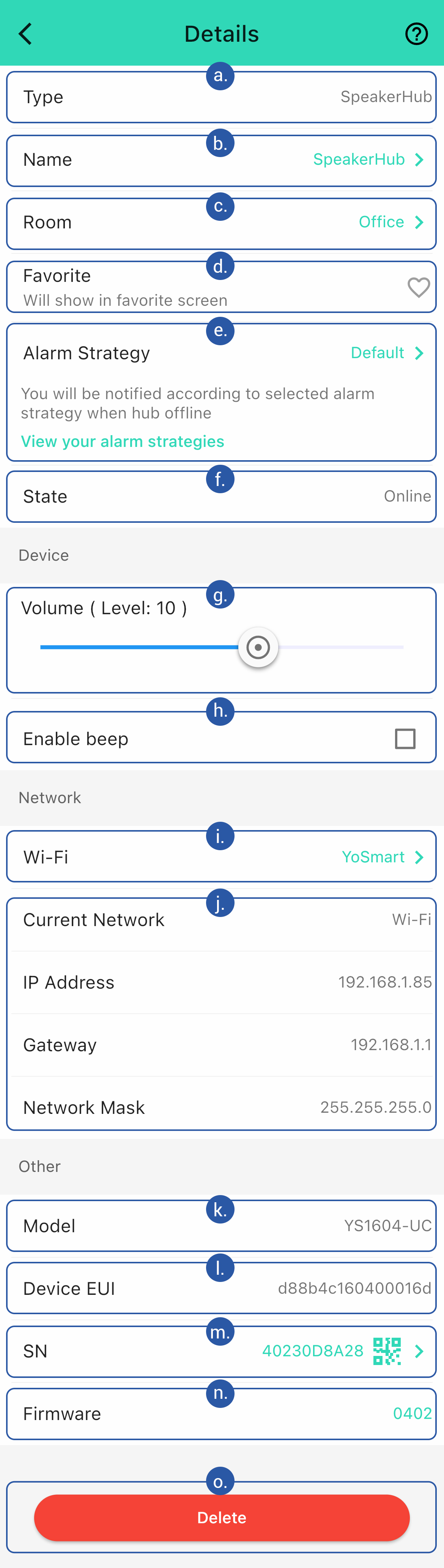

Please review the summary of the SpeakerHub device details screen before proceeding to the next step.

a. Device type

b. Device name

c. Device room

d. Favorite icon (select to add the device to your Favorites screen)

e. Alarm strategy for this device

f. Device online/offline state

g. Speaker volume level (1 minimum, 16 max.)

h. Enable speaker beep (enables feedback beep as well as other device sounds, such as start-up sound)

i. Your WiFi network name

j. IP Address info

k. Device model number

l. Device EUI (ID) number

m. Device serial number

n.Device firmware version (see part P)

o. Tap to delete the device from your account

Your SpeakerHub can broadcast a message via the following methods:

Manually, from the device screen
Automatically per your Alarm Strategy setting
As part of a scene, triggered from a strategy, manually triggered by the user in the app, manually triggered by an AlarmFob or FlexFob activation
As part of an automation, triggered by a device changing state or by schedule

The easiest way to start using your SpeakerHub is with it configured as a “trigger action” of an alarm strategy. An alarm strategy is just a fancy name for the checklist of things you want to happen when one of your devices alerts. As an example of an alert, when a leak sensor detects water. And as an example of a checklist: send me a text message and activate the SpeakerHub.

The easiest way to familiarize yourself with SpeakerHub’s audio capabilities is to manually broadcast a message directly from the Device screen.

Do not panic if half of these terms are Greek to you. We will get you bilingual soon enough!

Tap the back arrow to return to the main SpeakerHub screen shown in step 1. Tap the “play” icon (triangle)

This screen is used to create a one-time broadcast over the SpeakerHub. It is also good for testing your messages before adding them to a scene or automation.

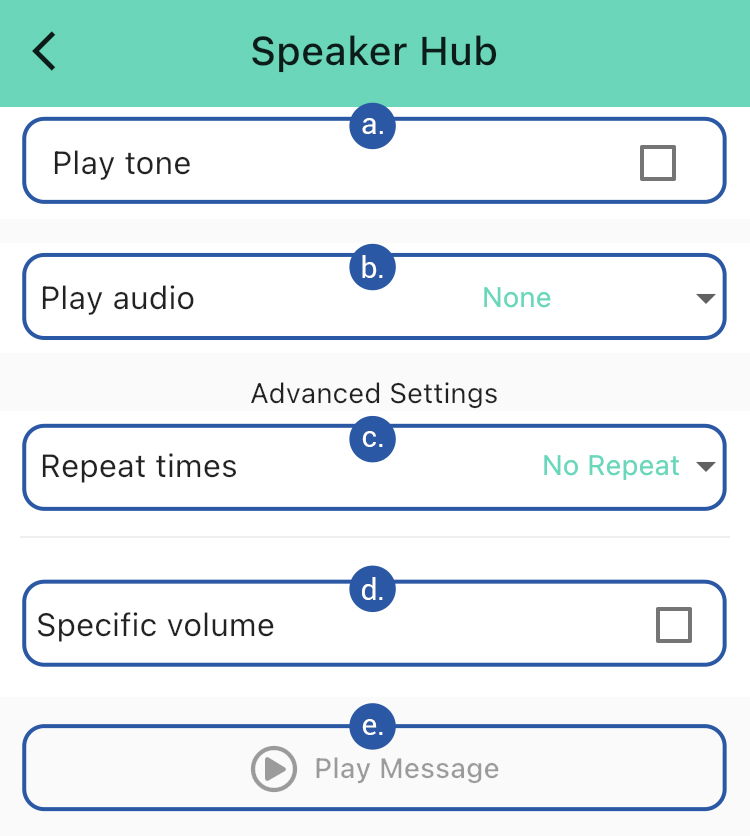

a. Check this box if you want a sound played before your spoken message

b. Tap for the voice message settings

c. You can repeat the message up to 3 times

d. Check this box to set a specific volume level

e. Tap to play your custom message

“Play Tone” include a Notification Tones and a Customer Source sub-list of tones and sounds. Customer Source includes customer-supplied audio files. Audio file uploading is not available at the date of user guide publication (this feature will be added soon).

Additional Customer Source audio files have been factory-installed in the SpeakerHub.

Type your desired spoken message into the Message box. You can test your message by tapping the Play Message button. Some words may not be pronounced as desired. Phonetically spelling the word may help.

Here is an example message:

Tone: Customer Source: ARPEGGIO.MP3

Message: “Garage door one is still open”

Messages you configure here are not saved. This is for testing a message or sending a one-time broadcast. Configure custom messages in Scenes or Automation. See our YoLink Academy tutorials for more information!

N. Advanced Settings

Do you want to get the most out of your SpeakerHub?

We know you didn’t buy a SpeakerHub just because it would look good on your nightstand. You have plans for it, like for it to inform you of a water leak, or of a high temperature alert in the freezer or of motion being detected in the back yard (or all of the above!). Visit the SpeakerHub product support page, as well as the YoLink Academy page, to learn how to configure custom alert messages, and automations, to tailor SpeakerHub to your application and your requirements. See the links on the last page of this manual.

O. Firmware Updates

Your YoLink products are constantly being improved, with new features added. It is periodically necessary to make changes to your device's firmware. For optimal performance of your system, and to give you access to all available features for your devices, these firmware updates should be installed when they become available

In the Detail screen of each device, at the bottom, you will see the Firmware section, as shown in the image below. A firmware update is available for your device if it says “#### ready now”

Tap in this area to start the update

The device will update automatically, indicating progress by percentage complete. You may use your device during the update, as the update is performed “in the background”. The FEAT (feature) indicating light will slowly blink red during the update, and the update may continue for several minutes beyond the light turning off

P. Factory Reset

Factory reset will erase device settings and restore it to factory defaults. Doing a factory reset will remove the device from your account and it will not harm the device and will lose any data or require you to re-do your automations, etc.

Only deleting a device from the app will remove it from your account

Instructions:

Hold the SET button down for 20-25 seconds until the FEAT (feature) LED blinks red. Release the button as soon as it blinks red, as holding the button longer than 25 seconds will abort the factory reset operation.

Factory reset will be complete when the status light stops blinking

PRODUCT NAME:	YoLink Thermostat
PARTY:	YOSMART, INC.
TELEPHONE:	831-292-4831
MODEL NUMBER:	YS1604, YS1604-EA
ADDRESS:	15375 BARRANCA PKWY SUITE J-107, IRVINE,CA 92618 USA
EMAIL:	SERVICE@YOSMART.COM

Q. IC Caution

-English:

This device complies with Industry Canada licence-exempt RSS tandard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

-French:

Le présentappareilestconf orme aux CNR d' Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) I' utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement.

R. 2-Year Limited Electrical Warranty

YoSmart warrants to the original residential user of this product that it will be free from defects in materials and workmanship, under normal use, for 2 years from the date of purchase. User must provide a copy of original purchase receipt. This warranty does not cover abuse or misused products or products used in commercial applications. This warranty does not apply to YoLink devices that have been improperly installed, modified, put to a use other than designed, or subjected to acts of God (such as floods, lightning, earthquakes, etc.). This warranty is limited to repair or replacement of the YoLink device only at YoSmart's sole discretion. YoSmart will NOT be liable for the cost of installing, removing, nor reinstalling this product, nor direct, indirect, or consequential damages to persons or property resulting from the use of this product. This warranty only covers the cost of replacement parts or replacement units, it does not cover shipping & handling fees. Please contact us, to implement this warranty (see Customer Support, below, for contact information)

S. Warnings

Power the Hub with the provided adapter, only

The hub is designed and intended for indoor use and is not waterproof. Install indoors, avoiding subjecting the Hub to water or damp conditions

Do not install the hub inside or near metals, ferromagnetism or any other environment which may interface with the signal

Do not install the Hub near flames/fire or expose to high temperatures Please do not use strong chemicals or cleaning agents to clean the hub.

Please use a clean, dry cloth to wipe the hub to avoid dust and other foreign elements entering the Hub and affecting the operation of the Hub

Avoid allowing the hub to be exposed to strong impacts or vibration, which may damage the device, causing malfunctions or failure

T. Contact Us / Customer Support

We are here for you, if you ever need any assistance installing, setting up or using a YoLink app or product!

Need help? For fastest service, please email us 24/7 at service@yosmart.com

Or call us at 831-292-4831 (US phone support hours: Monday - Friday, 9 AM to 5 PM Pacific)

You can also find additional support and ways to contact us at: www.yosmart.com/support-and-service

Or scan the QR code:

Support Home Page

Finally, if you have any feedback or suggestions for us, please email us at feedback@yosmart.com

Thank you for trusting YoLink!
